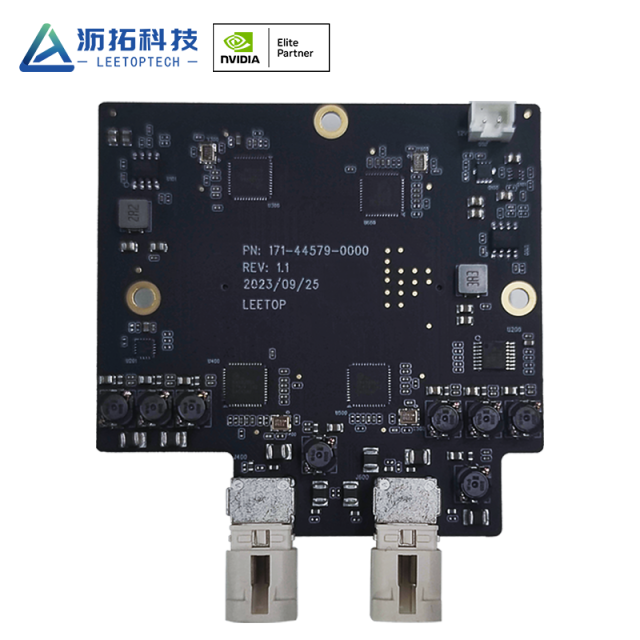

Leetop_C1715 function adapter board is an adapter board made with Leetop_A205E/A605/A505/A607/A609/A680 carrier board to support GMSL camera function. The deserializer chip is MAX9296A, which can support up to 8 channels of GMSL cameras. It can support up to 8 GMSL cameras with AGX/AGX ORIN, supports up to 4 GMSL cameras with Orin NANO/Orin NX, and supports up to 6 GMSL cameras with Xavier NX
|
Interface |
Specifications |
|
Serial decoder |
MAX9296A |
|
GMSL CAMERA |
1*8GMSLCAMERA |
|
Input Voltage |
+9V ~ +12V DC Input |
|
Load capacity |
Above60W |
|
Dimensions (W×D ×H) |
92x80x23 (mm) |
|
Temperature Operating |
-25℃-75℃ |
|
Storage Temperature /Humidity |
-25℃-65℃ 10%-90% No condensation environment |
|
Weight |
0.049KG |
