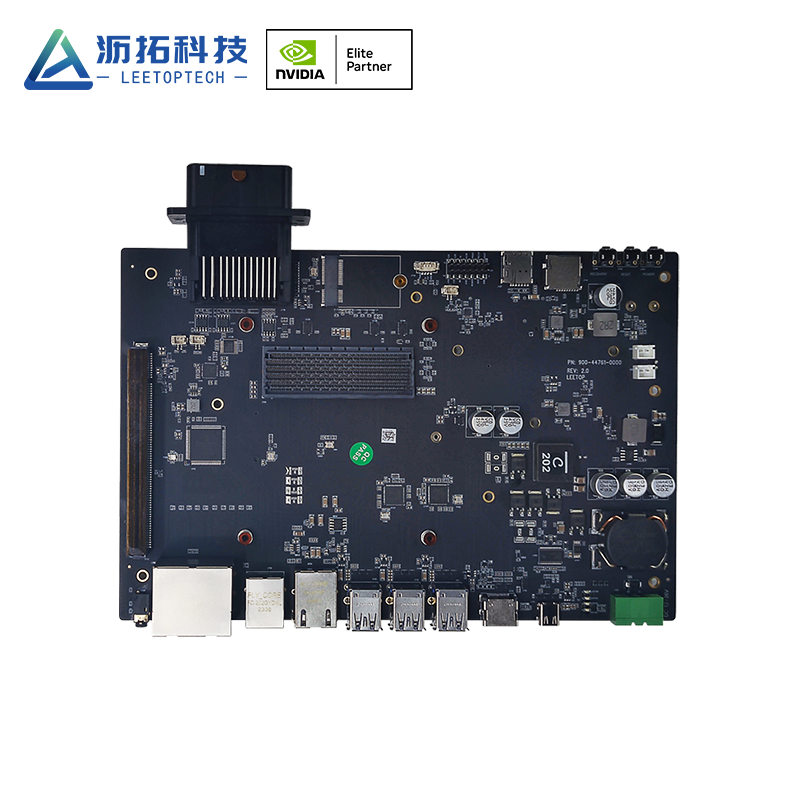

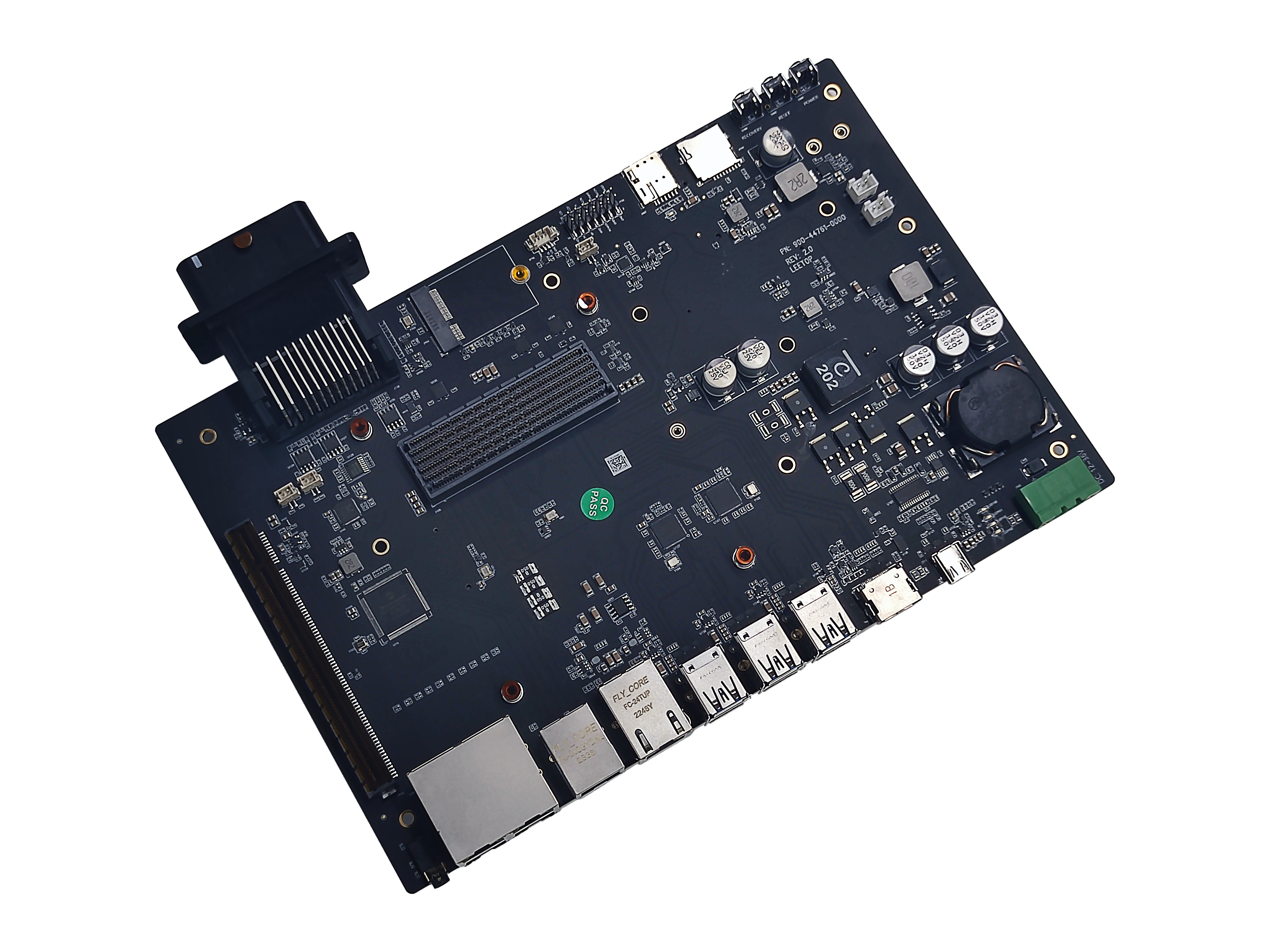

Leetop_A680 is a high-performance carrier board developed based on the NVIDIA AGX Orin core module. Leetop_ A680 carrier board has rich interfaces and can provide up to 200/275TOPS computing power for numerous terminal devices. In addition, Leetop_A680 provides rich peripheral interfaces. Comply with industrial standards such as earthquake resistance and anti-static.
| Specifications | ||
| Module | Jetson AGX Orin 32GB | Jetson AGX Orin 64GB |
| Al Performance |
200 TOPS | 275 TOPS |
| GPU | 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
| CPU | 12-core NVIDIA ArmR Cortex A78AE v8.264-bit CPU 3MB L2+6MB L3 |
12-core NVIDIA ArmR Cortex A78AE v8.264-bit CPU 3MB L2+6MB L3 |
| Memory | 32GB 256-bit LPDDR5 204.8GB/s" |
64GB 256-bit LPDDR5 204.8GB/s |
| Storage | 64GB eMMC 5.1 | |
| Video Encode |
1x 4K60 (H.265) 3x4K30(H.265) 6x 1080p60(H.265) 12x1080p30(H.265) |
2x4K60(H.265) 4x4K30 (H.265) 8x 1080p60(H.265) 16x 1080p30(H.265) |
| Video Decode |
1x8K30(H.265) 2x4K60(H.265) 4x 4K30(H.265) 9x 1080p60 (H.265) 18x1080p30(H.265) |
1x8K30(H.265) 3x4K60(H.265) 7x4K30 (H.265) 11x 1080p60(H.265) 22x 1080p30(H.265) |
| Power | 15W-40W | 15W-60W |
