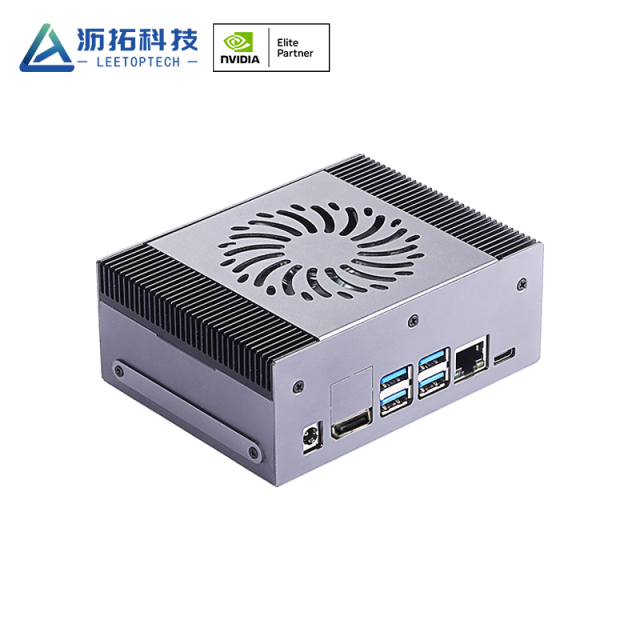

YL-X618S For Jetson orin nano/orin nx super version

YL-X618S is an embedded artificial intelligence computer developed based on NVIDIA Jetson Orin NANO/Orin NX modules, focusing on the edge computing field, creating a new intelligent computing experience for the industry. It has a powerful computing power of up to 34/67/117/157 TOPS, focusing on edge computing scenarios, relying on the excellent performance of the Jetson Orin series modules to efficiently handle complex computing tasks. With the advantages of NVIDIA's complete AI software stack, SDK and software platform, YL-X618S has become a high-performance, low-power embedded edge computing device that meets industrial-grade anti-vibration and anti-static standards. It is widely adapted to AI application development, autonomous driving, intelligent transportation, medical health, computer vision and other scenarios, enabling terminals to operate efficiently.

$0.00
module:
Jetson orin nx 16G
Jetson orin nx 8G
Jetson orin nano 4G
Jetson orin nano 8G
  • YL-X618S For Jetson orin nano/orin nx super version
  • YL-X618S For Jetson orin nano/orin nx super version
  • YL-X618S For Jetson orin nano/orin nx super version
  • YL-X618S For Jetson orin nano/orin nx super version
  • YL-X618S For Jetson orin nano/orin nx super version

SPECIFICATION

Processor module:
Jetson Orin NX 8GB Jetson Orin NX 16GB
AI Performance 70 TOPS 100 TOPS
GPU 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
CPU 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Video Encode

1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265)

1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)

Video Decode

1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265)

1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)

Memory 8 GB 128-bit LPDDR5 102.4 GB/s 16 GB 128-bit LPDDR5 102.4 GB/s
Storage

(Supports external NVMe)

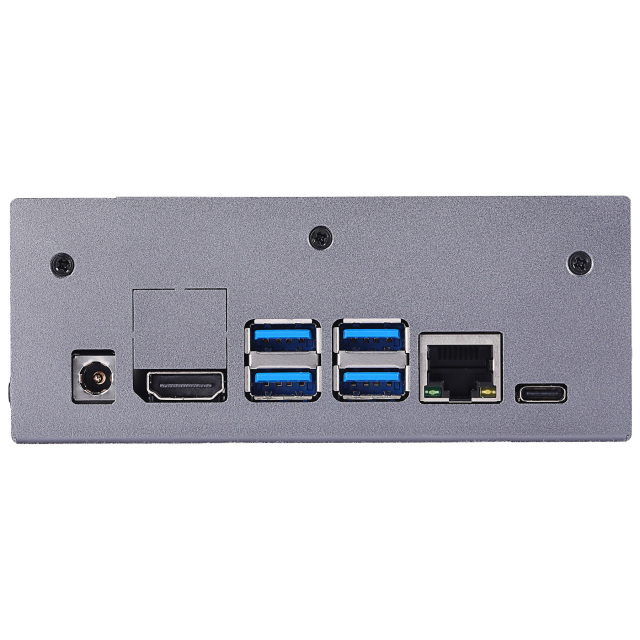

Interface I/O:

Interface Specification
Network 1 × Gigabit Ethernet Connector (10/100/1000)
USB 4x USB 3.2 Type A 1x USB 2.0 +3.2Type C
Video output 1 × DP
CAN 1 × CAN 1 xUART
SPI Bus 2 × SPI Bus
power +9--+20V DC Input@7A

Power Supply:
Power Supply Spec
Input Voltage +9--+20V DC Input @7A
power consumption 60W

Mechanical:
Mechanical Spec
Dimensions (W×D ×H)

122x93x48.4 (mm)


Environmental:
Environmental Spec
Operating Temperature

-25℃-65℃

Storage Humidity 10%-90% non-condensing
